30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector

30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector
30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector

Large Image :  30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 30tubes
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector

Description
Collector Area: 1-4 M2 Insulation Layer: 40mm
Frame: Aluminum Alloy Reflector: Aluminum Alloy Reflector
Heat Pipe: 24*90mm Condenser Manifold Color: Silver
Angle Of Bracket: 45 Degree Application: House Used
High Light:

45 Degree Pressurized Solar Collector

,

Pressurized Solar Collector 30 Tubes

,

Aluminum Alloy Heat Pipe Solar Collector

30tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector



Specifications

58 Heat Pipe Solar Energy System
1. Solar key mark, CE,
2. 0.73 premium conversion factor
3. Digital & auto production line



Material

1. Manifold: Aluminum alloy

2. Channel: Red copper

3. Heat pipe: Copper

4. Bracket: Aluminum alloy/ Galvanized steel/ Stainless steel

5. Insulation material: Rock wool



Feature:

1) High efficiency solar collector using heat pipe evacuated tubes.

2) Able to be used in all climates.

3) Reliable and efficient with twin-glass solar tubes.

4) Copper heat pipes for rapid heat transfer.

5) Easy plug-in installation for mounting on the roof or at ground level.

6) Maintenance free.

7) Suitable for mains pressure water (up to 6bar / 87psi).

8) Corrosion resistant silver brazed copper header.

9) Frame material: SS / AL / Black coating

10) Collectors may be connected in series to increase water heating capacity.

11) Tubes easily replaced if broken - can be used with broken tubes.

12) Ideal for commercial solar water heating applications



Our Advantages:

1. Our Product is economic and environmental.

2. Our Product is durable and has a long service life.

3. We have rich production experience.The quality of Product is reliable.

4. We have a perfect production process and strict quality control system.

5. We have perfect service system and will give you the best service.



Working Principle:



high pressure heat pipe solar collector is one of the most popular solar collector with pretty high efficiency.

The selective coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper heat pipes by aluminum wrapping.

The heat transfer liquid in heat pipe then vaporize and rapidly rise to the top condenser.

In active system, a pump circulates water or heat transfer fluid through the manifold header pipe, taking away the heat to store in tank water.

The cooled vapor in heat pipe then liquefies and returns to pipe bottom, waiting for another heat circulation in few seconds.





Solar Collector Specifications
Components Material & Specifications
Evacuated Tubes Material: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: Φ58mm outer tube; Φ47mm inner tube;
1.8m length, 1.8mm outer tube wall thickness
Solar Absorb Coating Material: Graded AL/N on AL
Absorptance: >92% (AM1.5); Emittance: <8% (80oC)
Vacuum: P<5x10-3 Pa; Heat loss: <0.8W/ (m2 oC)
Heat Pipes Material: High purity “oxygen free” copper (ASTM: C10200, DIN: OF-Cu)
Heat transfer fluid: distilled water
Maximum heat transfer capacity: 220W
Operating angle: 20-80o Startup temperature: ~30oC
Copper Header Pipe Material: Copper (ASTM: C1100, DIN: ECu-58); Potable water rated.
Brazing rod: BAg45CuZn Maximum pressure: 800kPa
Connection Options: 7/8” OD copper (US size), 19.1mm OD flared nut
(Australia) or 22mm OD copper (Europe)
Heat Transfer Fins Material: High purity aluminum
Rubber Components Material: HTV Silicone Rubber (UV stabilised)
Mounting Frame Material: 439 Stainless Steel or 6005-T5 Aluminum Alloy
Tube Clips Material: 301 Stainless Steel
Fasteners Material: 304 Stainless Steel
Manifold Casing Material: 5005-H16 Aluminum with Anodized or Powder Coated Finish
Manifold Insulation Material: Glass Wool (K = 0.043W/mK)
Thickness: Average >50mm

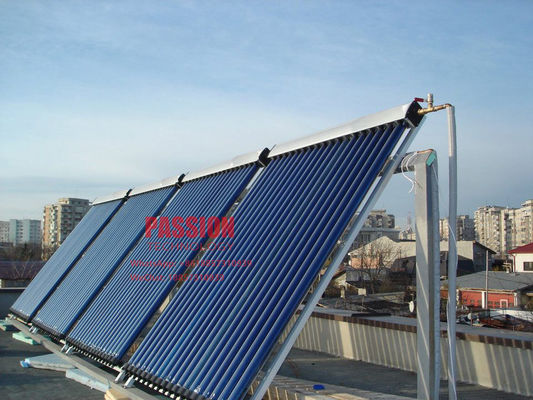

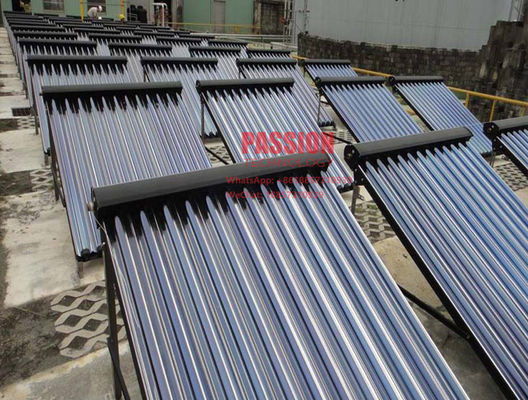

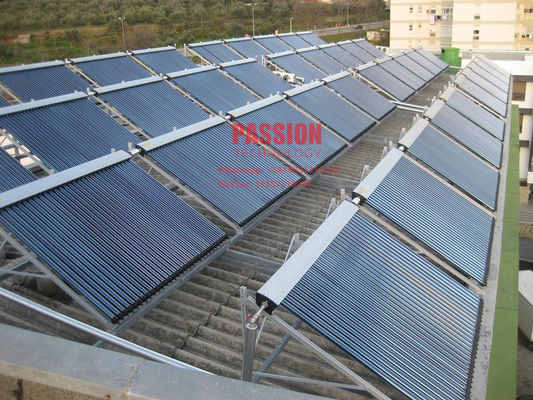

30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 030 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 130 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 230 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 3

30 Tubes Pressurized Solar Collector 24*90mm Condenser Heat Pipe Solar Collector 4
