Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors

Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors
Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors

Large Image :  Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 2m²/2.5m²/3m²
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors

Description
Frame Colour: Black/Silver Work Pressure: 0.6Mpa
Cover Material: Low Iron Tempered Textured Glass Insulation Material: Fiberglass
Bracket: Aluminum Alloy Using: Large Heating Project
Absorber Coating: Blue Film/Black Chrome Welding: Ultrasonic Welding
High Light:

0.6Mpa black chrome flat plate collector

,

blue titanium coating flat plate collector

,

Grid Type Flat Plate Solar Collector

Black Chrome Flat Collector Black Coating Flat Panel Blue Titanium Solar Thermal Flat Plate Collectors



Specifications



Copper Pipe Flat Collector
1. Pressurized collectors
2. Affordable solar heaters
3. Suit for hot area
4. Domestic systems



Copper Pipe Flat Plate Solar Collectors



The copper Pipe Flat Plate Solar Collectors is a tank of roof-mounted system,using the thermosiphon principle to transfer heat from collector to water inside tank.

The thermosiphon coating:selective absorb coating and hot water rises.

The collectors are coated with a heat-absorbent surface which absorbs the sun rays and heats the fluid in the collector.

As the fluid heated,it rise the top of the collector panel and into the tank where it displaces cooler fluid which flows in to the bottom of the collector panel where the process is repeated.

The more temperature difference between the fluid in the collector panel and water in the tank, the faster flowing and heat exchanging.



Key feature



1. Safe and steady

Flat plate solar collector uses all cooper fluid tube;

System operating is steady; components are not easy to be damaged;



2. Pressurized operating

Working pressure is 0.6Mpa; designed pressure is 1.2Mpa;

the hot water is forced to stream out from the top; it is convenient to use.



3. High heat efficiency

Absorbing coating of the collector is black chrome and blue sputtering;

absorbing rate is 92-96%, and emission rate is 5%-15%; heat efficiency is high.



4. Good temperature preservation

Thickness illustration layer is 50mm; constant temperature high pressure quantitative foam;

less than 5 Celsius Degree per 24.



5. Long using life

Inner tank is 1.2-2.0mm stainless steel; resist high temperature and corrosion; 15 years using life.



6. Several models fulfill different user need

According to customers’ requirement, we put our several modes with different specifications to suit flatlet, villa, hotel and factories. , etc



7. Easy installation



Parameter table



Model PT-F-AO PT-F-BC PT-F-BT
Data
Dimension LxWxH (mm) 2000*1000*80 2000*1250*80 2000*1500*80
Gross Area (m2 ) 2.00 2.50 3.00
Absorber Area (m2 ) 1.9 2.38 2.85
Number of covers 1
Cover Material Low iron tempered textured glass
Cover Thickness(mm) 3.2
Cover Transmission >91.7%
Weight (KGS) 34/43/51
Absorber
Absorber material Aluminium Plate
Absorber coating Anode Oxidation Black Chrome Blue Titanium
Welding Laser welding/Ultrasonic welding
Construction Type Grid type Grid type Grid type
Header Material Copper TP2 Copper TP2 Copper TP2
Header pipe Red copper/ Φ22*0.6*2 PCS
Riser Material Copper TP2/CA1220
Riser pipe Red copper Φ8/10*0.5*7 PCS Red copper Φ8/Φ10*0.5*9 PCS Red copper Φ8/Φ10*0.5*11 PCS
Work Pressure 0.6Mpa
Test pressure 1.2Mpa
Thermal Insulation
Insulation Material Fiberglass
Insulation Thickness 40mm
Casing
Frame Aluminium alloy
Frame Colour Silver/Black
Back Plate Galvanized steel
Sealing Gasket EPDM



Packaging & Shipping

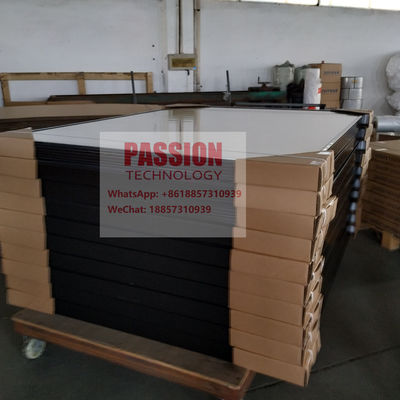

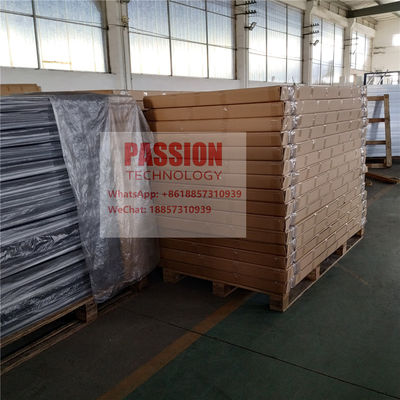

Thermosyphon Solar Water Heaters are put into cartons firstly.
The samples are loaded into the plywood boxes.

For the FCL goods, cartons can be loaded into the container directly from solar water heater manufacturer.



Warranty

10 years international responsibility for Flat Plate Panel Solar Collector due to original quality problems.



Notice

1. The angle of the frame can be changed in the production as the virtual geographical condition of the customers.

2. We can design the suitable angle for the customers.

3. We offer the spare accessories and tubes for your order for free.

4. We can offer the different material of water tank , frame , and tubes according to your request.
