Product Details:
|
| Capacity: | 2000L/1500L | Structure: | Split System |
|---|---|---|---|
| Flat Plate: | Black Chrome | Principle: | Pressurized |
| Collector: | Flat Plate | Inner Tank: | Stainless Steel 304/316 |
| Bracket: | Stainless Steel 201 0/20/30/45 Degrees | Material: | Copper Aluminum |
| High Light: | residential solar water heater,split pressurized solar water heater |
||

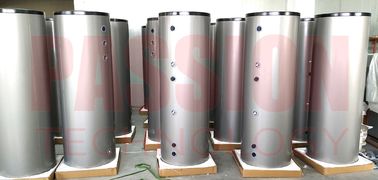

300L Flat Collector 1000L Stainless Steel Heat Pipe Split Solar Water Heater 2 Coils
Advantage:
1. Highly efficient absorber of high performance with daily average efficiency over 76%;
2. Blue film absorber with automatic production line,can supply you stable high quality products;
3. Withstand pressure of 6 Bar, can be connected directly with city water or your big water tank;
4. Simple structure, easy to assembly and install in short time, no breakage;
5. Best insulation with polyurethane foam;
6. Can be used all year round in the cold climate;
7. Can be used together with auxiliary electric boost;
8. Long service life, can be used over 15 years;
Flat Plate Solar Water Heater Features:
1.Using patent advanced coating technology with high efficiency performance.
2. High strength aluminum-alloy structure with surface varnish baking
3. High visual shape ,easy installation ,maintenance free
4. Pressurized designing, operate with pressure up to 1 Mpa
5. Can be combined with existing energy source
Heat Pipe Split Solar Water Heater with Double Coils
| Model | PTS-H2-15 | PTS-H2-20 | PTS-H2-25 | PTS-H2-30 | PTS-H2-40 | PTS-H2-50 | PTS-H2-100 | |
| Heat Pipe Solar Collector | Tubes (PCS) | 15 | 20 | 25 | 30 | 40 | 50 | 100 |
| Three Target Vacuum Tube | Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3; | |||||||
| Heat Pipe | Condesor: φ14*70mm; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa; | |||||||
| Outer Shell/Bracket - Alluminum Alloy | Insulation Layer - Rock wool | Dustproof Rubber - EPDM | Dsily Heat Gain - 8.5MJ/m² | |||||
| Inlet/outlet - 22mm/3/4" | Tailstock - ABS | Temperature - 250 °С | Work Pressure - 0.6MPa | |||||
| Contour Area | 2.32m² | 3.10m² | 3.78m² | 4.52m² | 6.20m² | 7.56m² | 15.12m² | |
| Aperture Area | 1.43m² | 1.89m² | 2.36m² | 2.83m² | 3.8m² | 4.72m² | 9.44m² | |
| Absorption Area | 1.22m² | 1.62m² | 2.04m² | 2.43m² | 3.24m² | 4.06m² | 8.16m² | |
| Quantity (PCS) | 15tubes*1 | 20tubes*1 | 25tubes*1 | 30tubes*1 | 20tubes*2 | 25tubes*2 | 25tubes*4 | |
| Water Tank |
Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 | |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 | |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 | |
| Outer Tank | Color Steel Plate/ Enamal White | |||||||
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 | ||
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar | |||||||
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 | ||
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W | |
| Working Station | SR961S (Including controler & WILO PUMP) | |||||||
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L | |
Flat Panel Split Solar Water Heater with Double Coils PTS-F2
| Model | PTS-F2-15 | PTS-F2-20 | PTS-F2-25 | PTS-F2-30 | PTS-F2-40 | PTS-F2-50 | PTS-F2-100 | |
| Flat Panel Solar Collector | Core material | Copper | ||||||
| Coating | Copper aluminum cover coating of Blue Titanium Absorption rate: α=0.95 Reflection rate ε=0.04. | |||||||
| Base plate | Marine-grade H3004 Aluminum, toughnessH32 Thickness 0.7mm | |||||||
| Glass of panel | Special glass for panel With ANS1297-1-1975, BS6206A and JIS R3206 standards; toughness with AS2208-1978 and federal standards of United States. | |||||||
| Panel Insulation | Bottom with fiberglass insulation ,Thickness 60mm,Density 20kg/m³; Side-thickness insulation:13mm; Density 23kg/m³; Thermal properties: R1.0 Thermal conductivity : 0.059W/m． | |||||||
| Quantity (PCS) | 1 | 1 | 2 | 2 | 3 | 3 | 6 | |
| Water Tank |
Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 | |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 | |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 | |
| Outer Tank | Color Steel Plate/ Enamal White | |||||||
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 | ||
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar | |||||||
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 | ||
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W | |
| Working Station | SR961S (Including controler & WILO PUMP) | |||||||
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L | |
Flat Plate Solar Collector Technical Data :
|
Model |
PT-F-AO |
PT-F-BC |
PT-F-BT |
|||
|
Data |
||||||
|
Dimension LxWxH (mm) |
2000*1000*80 / 2000*1250*80 / 2000*1500*80 |
|||||
|
Gross Area (m2 ) |
2.00 |
|||||
|
Absorber Area (m2 ) |
1.9 |
|||||
|
Number of covers |
1 |
|||||
|
Cover Material |
Low iron tempered textured glass |
|||||
|
Cover Thickness(mm) |
3.2 |
|||||
|
Cover Transmission |
>91.7% |
|||||
|
Weight (KGS) |
29 |
|||||
|
Absorber |
||||||
|
Absorber material |
Aluminium Plate |
|||||
|
Absorber coating |
Anode Oxidation |
Black Chrome |
Blue Titanium |
|||
|
Welding |
Laser welding/Ultrasonic welding |
|||||
|
Construction Type |
Grid type |
Grid type |
Grid type |
|||
|
Header Material |
Copper TP2 |
Copper TP2 |
Copper TP2 |
|||
|
Header pipe |
Red copper/ Φ22*0.6*2 PCS |
|||||
|
Riser Material |
Copper TP2/CA1220 |
|||||
|
Riser pipe |
Red copper/ Φ8*0.5*7 PCS/Φ10*0.5*7 PCS |
|||||
|
Work Pressure |
0.6Mpa |
|||||
|
Test pressure |
1.2Mpa |
|||||
|
Thermal Insulation |
||||||
|
Insulation Material |
Fiberglass |
|||||
|
Insulation Thickness |
40mm |
|||||
|
Casing |
||||||
|
Frame |
Aluminium alloy |
|||||
|
Frame Colour |
Silver/Black |
|||||
|
Back Plate |
Galvanized steel |
|||||
|
Sealing Gasket |
EPDM |
|||||
Packing:
LCL( Less than Container Load ):Wooden case
FCL( Full Container Load ):Export carton
Delivery:
Usually, it is 10 Working days after receiving deposit or original L/C.
