Product Details:
|
| Power: | 1.5/2/3KW | Voltage: | 110V/220V-240V |
|---|---|---|---|
| Type: | Solar Water Heater Accessories | Resistance Wire: | OCr25A/Ni80Cr20/Kanthal |
| Sample: | Available | Power Supply: | Electricity |
| Diameter: | 8/10mm | Use: | Solar Water Heater |
| High Light: | hot water heater accessories,solar hot water spare parts |
||

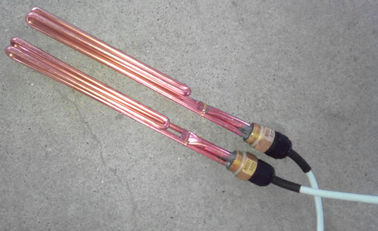

Kawai 2000W Electrical Heater 1500W Electric Element 3000 Electric Heating Device
We produce wide range of metal sheath tubular heating elements to heat up liquids,
gases and solids in numerous applications.
Our custom made tubular elements can be manufactured based on your engineering drawings and specifications,
or samples to meet with your specific requirements.
We currently manufacture 4.5, 5.2, 6.5, 7.2, 8.0, 8.5, 9.5, 12 mm diameter elements .
Description

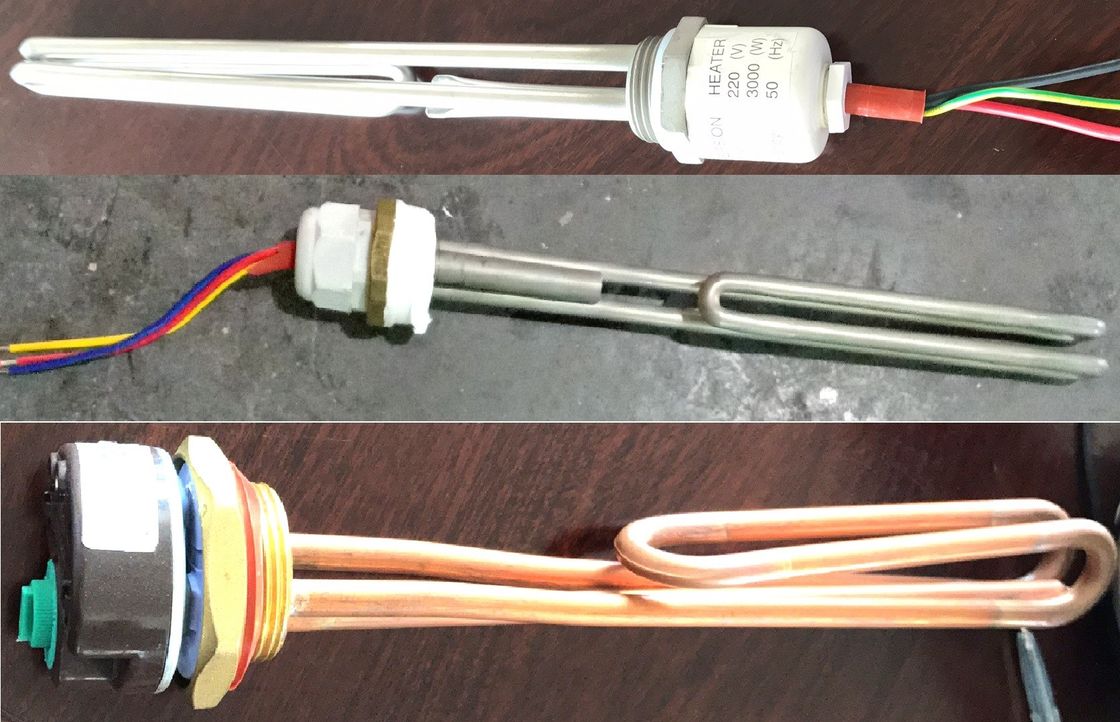

Portable Electrical Heating Element For Solar Water Heater are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling.
Sizes of screw plug heaters are available with 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2" pipe threads.
A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.
•Water:
Deionized Demineralized Clean
Potable Process
•Industrial water rinse tanks
•Vapor degreasers
•Hydraulic oil, crude, asphalt
•Lubricating oils at API specified watt densities
•Air and gas flow
•Caustic solutions
•Chemical baths
•Anti-freeze (glycol) solutions
•Paraffin
| Specification parameter | Detail | Remark |
| Sheath Material | sus304 | Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800as requested |
| Voltage/wattage | 240V/ 3000W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance (cold condition)+5%-10% |
| Tube Diameter | 8mm | Tube diameter can be changed to 8.0mm,8.5mm,or other as requested |
| Resistance Powder | Magnesium oxide | We can use other powder if requested |
| Resistance Wire | Ni80Cr20 | Ocr25Al5 or other material if requested |
| Length*Width*Heigth | 27.5cm*6cm*6cm | |
| Leads | sus304 | Materials of terminal piece could be stainless iron,stainless steel if required |
| Screw Thread | 1 1/2' | Other thread can be made if required |
| Shape | U or as requested | |
| Warranty | 10000 working hour or at least three year | |
| Weight | 500g | |
| Case pack | 38piece | |
| packing volume | 0.042m³ | |
