Product Details:
|
| Power: | 1.5/2/3KW | Voltage: | 110V/220V-240V |
|---|---|---|---|
| Type: | Solar Water Heater Accessories | Resistance Wire: | OCr25A/Ni80Cr20/Kanthal |
| Sample: | Available | Power Supply: | Electricity |
| Diameter: | 8/10mm | Use: | Solar Water Heater |
| High Light: | solar water heater spare parts,hot water heater accessories |
||

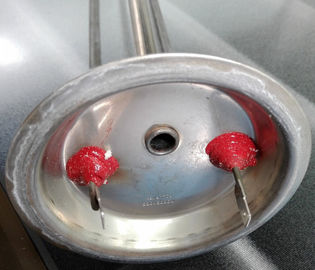

Kawai 1.5KW Electrical Heater Solar Water Heater 2KW Electric Element 3KW Electric Heating Device
We produce wide range of metal sheath tubular heating elements to heat up liquids,
gases and solids in numerous applications.
Our custom made tubular elements can be manufactured based on your engineering drawings and specifications,
or samples to meet with your specific requirements.
We currently manufacture 4.5, 5.2, 6.5, 7.2, 8.0, 8.5, 9.5, 12 mm diameter elements .
| Specification parameter | Detail | Remark |
| Sheath Material | sus304 | Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800as requested |
| Voltage/wattage | 240V/ 3000W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance (cold condition)+5%-10% |
| Tube Diameter | 8mm | Tube diameter can be changed to 8.0mm,8.5mm,or other as requested |
| Resistance Powder | Magnesium oxide | We can use other powder if requested |
| Resistance Wire | Ni80Cr20 | Ocr25Al5 or other material if requested |
| Length*Width*Heigth | 27.5cm*6cm*6cm | |
| Leads | sus304 | Materials of terminal piece could be stainless iron,stainless steel if required |
| Screw Thread | 1 1/2' | Other thread can be made if required |
| Shape | U or as requested | |
| Warranty | 10000 working hour or at least three year | |
| Weight | 500g | |
| Case pack | 38piece | |
| packing volume | 0.042m³ | |
