Product Details:
|

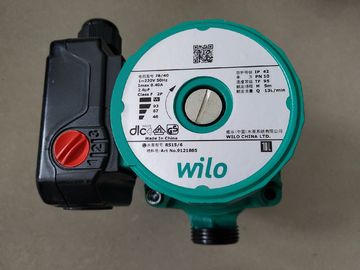

Model: | RS15/6 | Power Source: | 1~220V/50Hz |
---|---|---|---|
Fluids: | Clean Water | Total Head (m): | 6/5/3 |
Type: | Solar Water Heater Accessories | Brand: | Wilo Circulating Pump |
Use: | Solar Collector And Solar System | Casing: | Cast Iron |
High Light: | solar water heater spare parts,hot water heater accessories |
Detailed Product Description:

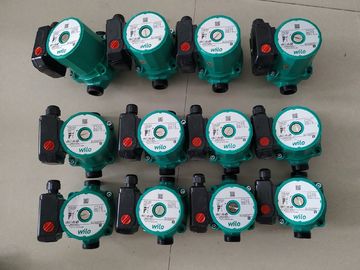

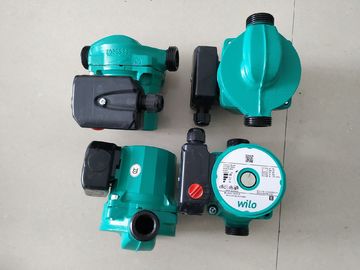

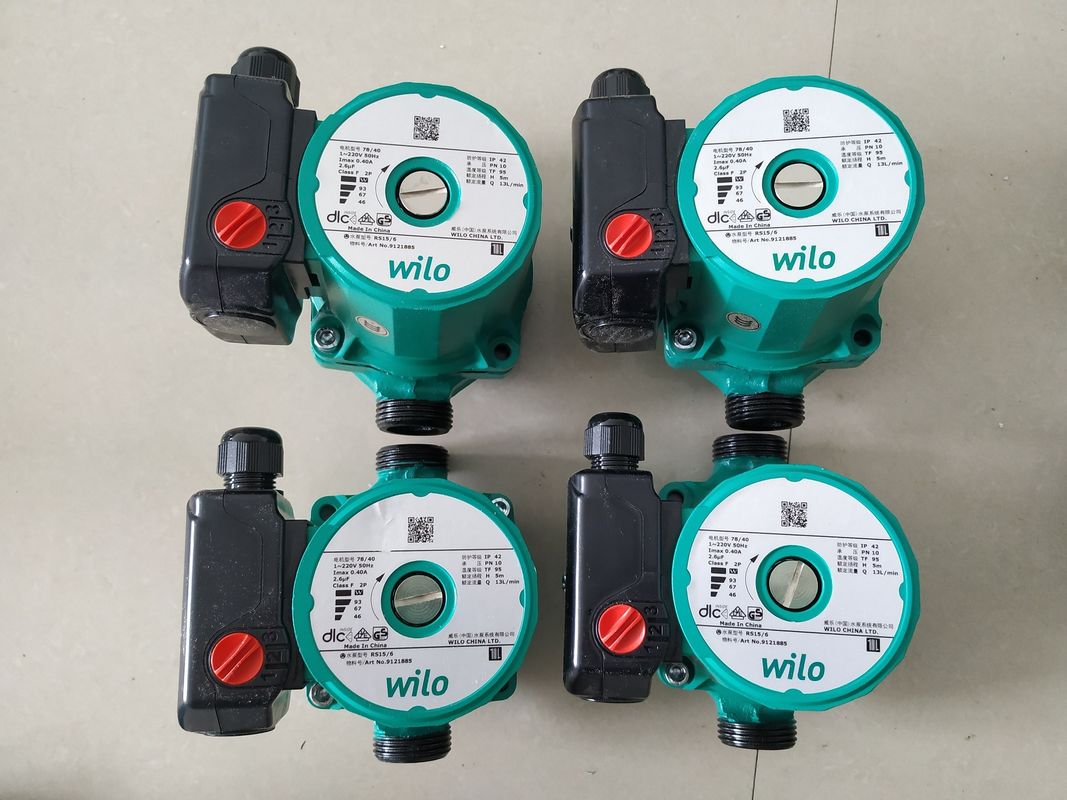

Circulate Pump For Solar Heating Systems Identification Code
E.g. : RS 25/6
RS : Screwed-end pump
25/ : Connection size
6 : Rated shut-off head [m]
Identification Code :
E.g. : RS 25/6
RS : Screwed-end pump
25/ : Connection size
6 : Rated shut-off head [m]
Place of Origin
|
China
|
Model Number
|
Circulate Pump
|
Price Terms
|
FOB, CIF
|
Brand Name
|
Sunlight & OEM
|
Payment Terms
|
T/T, L/C
|
Minimum Order
|
1 sets
|
Supply Ability
|
2,500sets/month
|
Delivery Time
|
7 days
|
Motor Data Single phase motor (EM) 2-(pole)-1~230V, 50Hz
Item NO. | Rated Power P 2 max. W |
Steps/Speed d n 1/p.m |
Power inpt P1 W |
Current I A |
Capacitor µ F/v |
Motor Protect | ||||||||||||
RS25/2 RS30/2 |
9 4 2 |
|
|
0.21 0.15 0.09 |
1.6/400 | 1) | ||||||||||||
RS25/4 RS30/4 |
22 13 7 |
|
|
0.28 0.20 0.13 |
2.0/400 | 1) | ||||||||||||
RS25/6 RS30/6 |
37 22 12 |
|
|
0.41 0.31 0.24 |
2.6/400 | 1) |
1) Non-overloading motor-No extemal overload control required. Always refer to name plate date.
Technical Data
Manual 3-speed control
Fluid temperature range:-10℃-+110℃
Max. Working prossure: 10 bars
3.Ambient Temperature
Permissible up to:40℃
4.Power
Mains power: 1~230V, 50Hz
5.Motor
Degree of protection:IP42
Insulation class: 1
Interference emission: EN 50081-1
Interference resistance: EN 50082-2
6.Construction Materials
Pump body: cast iron
Impeller: GF-PP
Shaft: stainless steel
Bearings: graphite
Scope of supply
Pump incl.2 union washers, packing and O&M manual
Accessories
Union connector fittings, thermal insulation
Mounting Positions
Pump shaft in the horizontal plane, terminal box optionally 3,6,9 or 12o’clock
Pump Equipment
Screwed end single head pump
Manual 3-speed control
Non-overloading single-phase motor
Optional left or right cable entry
Special design versions RS25/4 and RS25/6
Bronze body, 180mm port-to-port
Cast iron body 130 mm port-to-port
Measurement-weights
Item NO. | Rp | G | l 0 | l 1 | l 3 | l 4 | a | b 1 | b 2 | b 3 | b 4 | Weight ca. kg |
mm | I'N10 | |||||||||||
RS25/2 | 1 ″ | 1 1/2 ″ M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.4 |
RS30/2 | 1 1/4 ″ | 2 ″ M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.6 |
RS25/4 | 1 ″ | 1 1/2 ″ M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.4 |
RS30/4 | 1 1/2 ″ | 2 ″ M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.6 |
RS25/6 | 1 ″ | 1 1/2 ″ M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.4 |
RS30/6 | 1 1/4 ″ | 2 ″ M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.6 |
