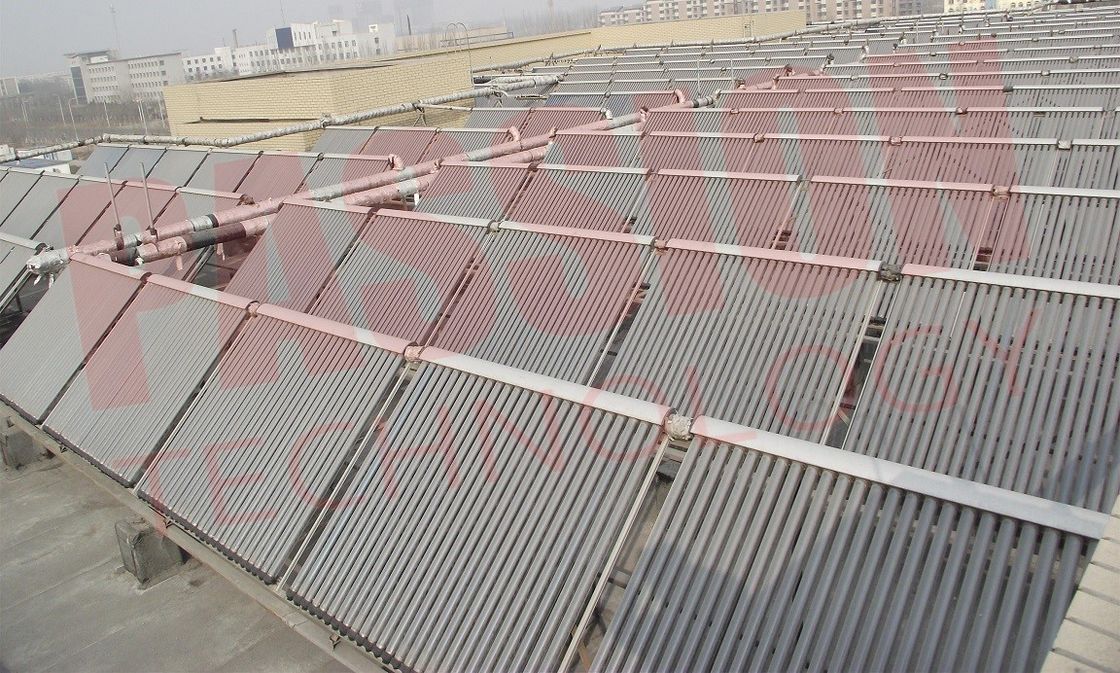

Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes

Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes
Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes

Large Image :  Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 30tubes
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

Centralized Solar Water Heating System Solar Hot Water Collector 30 Tubes

Description
Collector Tubes: 30 Tubes Insulation: High Pressure Polyurethane
Bracket: Aluminum Alloy Assembly: Flat Roof
Heat Pipe: 24mm Condenser Copper Manifold Color: Black
Angle Of Bracket: 20 Degree Application: Solar Water Heating
High Light:

heat pipe vacuum tube solar collector

,

pressurized solar collector

Centralized Solar Water Heating System, Heat Pipe Solar Collector, Solar Hot Water Collector 30 Tubes



Product Description



Evacuated tube heat pipe solar collector, one of our main products, is widely used in Europe, USA, Canada.......



How does it work?

Simple!

This system is consists of heat pipe vacuum tube, collector manifold & frame.



There is a heat pipe inside evacuated tube, and condensor is plugged into manifold.

Heat energy will be transfered to manifold by heat pipe as soon as the evacuated tubes gets sunshine.

In this way, the system starts circulation.

So it is called pressure solar collector too.



Specification
Collector inner manifold Material Copper runner
Insulation Rock wool
Collector outer manifold Material Aluminum alloy
Color Black
Evacuated Tube Type Three- target evacuated heat pipe
Size 58mm/1800mm
Collector Stand Material Aluminum alloy
Inclination Customized
Spare parts Connection Copper connection
Thermally Conductive Silicone Included



Feature



1. Solar radiation is absorbed by the solar tubes and converted into heat.

Heat pipes conduct the heat from within the copper tube up to the header pip

2. Anti-freeze liquid is circulated through the header.

3. No water inside the evacuated tubes, so the tubes will not break in the winter, suitable for Russia, USA, Finland.....

4. Pressure solar collector can be still work if some tube broken.

5. If you equip with a tank, water tank does not need to be installed above the solar collector.

6. It can be installed both on pitched roof and flat roof.



Model-tubes Number of tubes Absorb area
PT 12-58/1800 12 tubes(heat pipe) 1.56m²
PT 15-58/1800 15 tubes(heat pipe) 1.95m²
PT 20-58/1800 20 tubes(heat pipe) 2.60m²
PT 25-58/1800 25 tubes(heat pipe) 3.25m²
PT 30-58/1800 30 tubes(heat pipe) 3.90m²
PT 36-58/1800 36 tubes(heat pipe) 4.68m²



Heat pipe evacuated tube is a sealed copper pipe containing a small quantity of volatile liquid and some special additives but with no air.

Heat pipe tube consists of glass vacuum tube and a copper heat pipe which is fixed by aluminum fin and silicon rubber.

When copper heat pipe to be heated then it will conduct heat to its tip(condenser) which is plugged into the header pipe (inside of manifold).

Water run through the header pipe so that heat is transferred from the heat pipe condenser to the water.

We can have different tubes for each collector, from 8 tubes to 30 tubes.



Size & Weight & Load



    PT-12 PT-15 PT-18 PT-20 PT-25 PT-30
Size (m3) Manifold & stand 0.061 0.061 0.061 0.061 0.061 0.072
Tube 0.14 0.17 0.24 0.25 0.293 0.34
Total volume 0.201 0.231 0.301 0.311 0.354 0.412
Weight(kg) Manifold & stand 11 14 15.5 17 24 31
Tube 33 41 48 54 68 82
Total weight 44 55 63.5 71 92 113
Loading(set) 20GP 148 128 96 94 79 68
40GP 297 258 196 191 163 142
40HC 347 302 229 223 192 165



Warranty & Service



Warranty: 6 years

If some problem happens which is relative to our quality, we are absolutely responsible for it.

Contact with us at anytime, we will solve it in time.
