Product Details:
|
| High Light: | solar powered watering system,solar powered water pumping system |
||
|---|---|---|---|
LIQB Series DC Brushless Surface IN-BUILT CONTROLLER Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump
IN-BUILT CONTROLLER SOLAR PUMP
1.Easy installation and easy operation, connect with solar panel directly, no need
external controller
2.Can be powered by both solar panel and battery
3.Brushless permanent magnetic motor, controller inside, long working life and
high working efficiency
4.Over voltage and under voltage protection
5.Over current protection
6.Locked rotor protection
7.Lost phase protection
8.Reverse protection
9.MPPT function( maximum power point tracking)
10.Low temperature rise
Material Of Pump
◎ Outlet:Stainless steel/Iron
◎ Pump head: Stainless steel/Iron
◎ Pump body: Stainless steel/Iron
◎ Impeller:Brass
◎ Motor: Permanent magnet DC brushless motor
◎ Cable: 1.2M
◎ Air cooling
◎ MPPT function controller

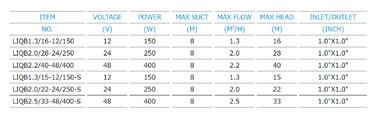

Model Analysis
LIQB1.3/16-12/150
LIQB: In-Built QB series
1.3: Max flow
16: Max head
12: Pump voltage
150: Pump power
Product Features
◎ Medium lift and medium flow, fit for home use
and irrigation
◎ Warranty:1 year
