LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface
LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface

Large Image :  LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface

Product Details:
Place of Origin: CHINA
Brand Name: OEM/PASSION
Certification: CE
Model Number: LHF-H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PLYWOOD CASE
Delivery Time: 2-10 DAYS
Payment Terms: T/T, L/C, Western Union,PAYPAL
Supply Ability: 20000PCS/DAY

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface

Description
High Light:

solar powered watering system

,

solar powered water pumps for livestock

LHF-H Series AC/DC HYBIRD Brushless Surface Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump

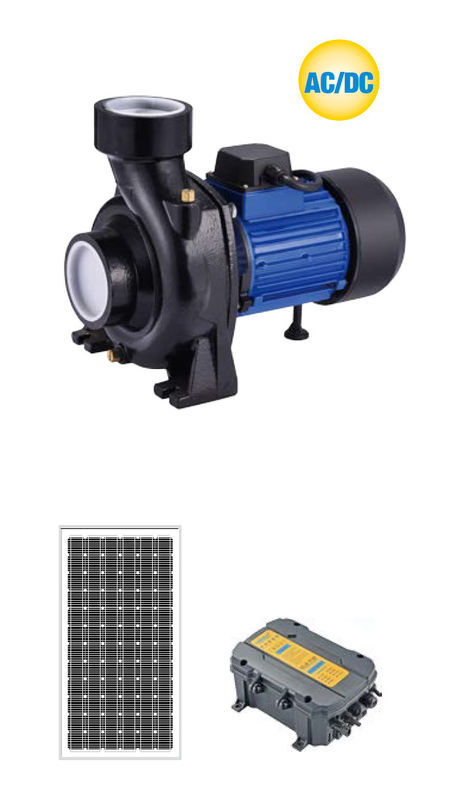

AC/DC HYBIRD SOLAR PUMP



1. Brushless permanent magnetic motor, efficiency improved by 20%-40%,

frequency conversion and controller outside

2. Soft start running, make motor life longer

3. Powered by AC/DC ( AC power include: grid electricity and generator electricity;

DC power include: solar panel and battery)

4. Supply voltage range: 90Vdc-460Vdc( Solar panel VOC voltage); 90Vac-240Vac

at 50/60Hz.

5. Reverse protection

6. MPPT built inside

7. Over current protection

8. Locked rotor protection

9. Lost phase protection

10. Low water level sensor protection

11. High water level sensor protection

12. AC/DC input option by manual or automatic

13. Remote control system (option)



Material Of Pump

◎ Outlet: Iron

◎ Pump head: Iron

◎ Pump body: Iron

◎ Impeller: Brass

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 1.2M

◎ Air cooling

◎ MPPT function controller

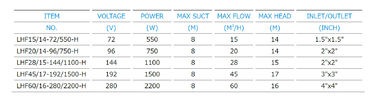

Model Analysis

LHF15/14-72/550-H

LHF: LARENS solar pump HF series

15: Max flow

14: Max head

72: Pump voltage

550: Pump power

H: AC/DC Hybird



Product Features

◎ Low lift and large flow, fit for irrigation

◎ Warranty: 1 year



LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface 0

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface 1

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface 2

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface 3

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface 4

LHF - H Series Solar Water Pumping System AC / DC HYBIRD Brushless Surface 5
